【产品主要参数】:
雾屏型号:SUSCES-1601
雾屏尺寸:1-3.9米不拼接,可以任意拼接长度
喷雾方向:向下喷雾
屏幕面积:1m*3m~3.5
功率:220v(ac) 2kw-7KW
耗水量:8~15升/h
成像设备:投影机(5000流明以上)或激光器
重量:160kg
介质:自来水
产品特点:吊挂式
控制方式:遥控器 (配送4米水管)
成像播放设备:投影机或激光
成像播放设备:投影机或激光
显示屏幕:3.2寸主屏幕显示 0.9寸遥控屏幕显示
控制方式:支持手动 遥控一键启动(遥控距离可到1000米)
支持工控485 232控制系统
支持遥控控制雾量大小线性调节
支持遥控控制风量大小线性调节
支持加密系统 (设定超过使用时间自动断电 解密后重新启用)
支持自动进水系统 自动排水系统 缺水显示 水位过高保护系统
雾机面积:宽0.60米x高0.55米*(长度按要求定制)
电源:AC 110V-240V
功率:1000W/1米
雾幕喷雾高度:3米(有效成像2米)
投影机要求:5000流明以上,长焦镜头
机器材质:雾幕机箱全部采用不锈钢焊接工艺和喷漆处理
水箱也全部采用不锈钢焊接工艺和喷漆处理,防水等级IP54。水箱,水管防漏等级99.99%
产品关键词:雾幕机 雾屏 雾帘 水雾帘 水雾屏 水雾机
工作原理
· 雾幕机其工作原理是使用雾化设备产生大量人工雾,结合空气流动学原理而制造出来的能产生形成平面雾气的屏幕。
· 利用其雾化屏幕的平面特性作为光路载体。
· 投影机投射图象在该载体上便可以在空间中形成虚幻立体的影像,形成一种三维空间立体图象,给人一种新的立体视觉享受。
· 人们可以从中穿过而不影响图像的展示,是能够直接感触到且可以穿越的投影成像系统。

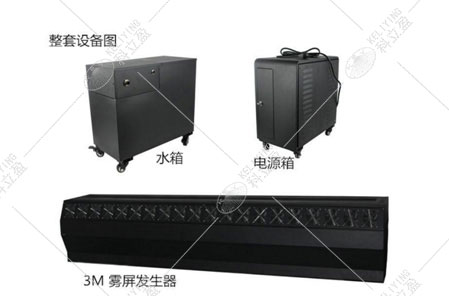

雾屏主要部件:
拓扑原理图:

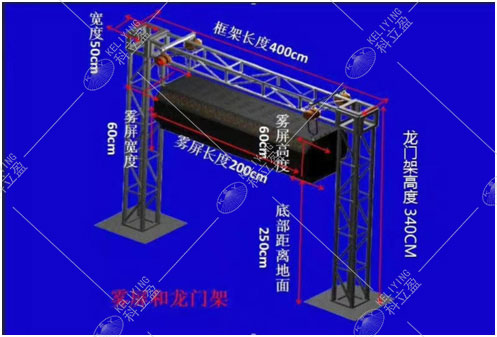

产品结构图:
产品特点:
雾屏影院技术的最大卖点在于其迷人的展示方式,单就一个雾屏就足以吸引游客的眼睛。具体来说有以下几个特点:
1、 不需要传统的物理屏幕,人可以直接穿透屏幕
2、 可以播放幻灯图片录像电影等影像资料
3、 节目源丰富,用户可以自行更换节目,不需要专业人员特殊制作
4、 图像清晰,富有动感
产品优势:
1. 突出展现空间立体效果,使画面逼真震撼,让参观者着身临其境,从而增加娱乐和互动趣味。
2.设备不受空间地点的限制,展示的画面大小可以根据需要自由进行扩大。
3.投影内容可以定制
4.雾幕免维护,设备使用寿命更长。
产品应用领域:
雾屏主要是适用于舞台、剧院、媒体展览机构、大型商场门口、迪厅、KTV、旅游景区、主题公园、娱乐场所、科技馆、博物馆、规划馆、新产品发布会、演艺场馆、、主题教育馆、儿童科学乐园,餐饮行业,会所等均可做为一种新的展示媒体。

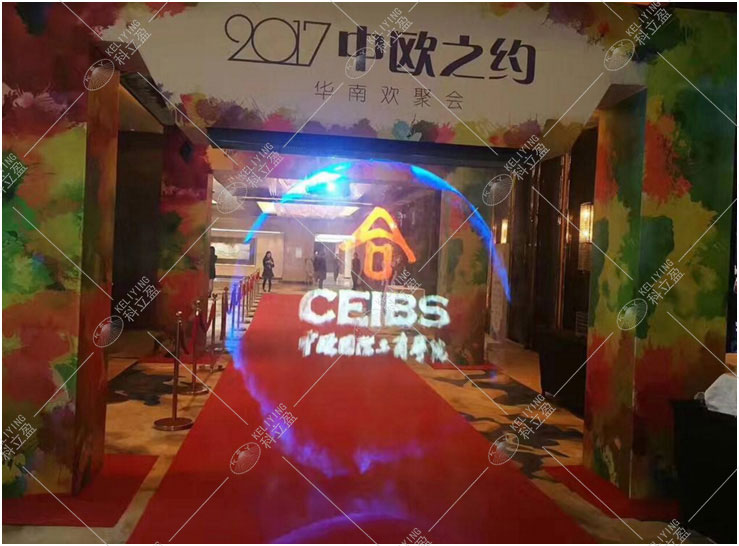

中奥活动华南欢乐聚会仪式
2015年香港珠宝峰会
2018年全球合作伙伴峰会
2016年安哥拉灯光行业峰会
Product main parameters
Fog screen model: SUSCES-1601
Fog screen size: 1-3.9 meters without splicing, can be spliced ??length
Spray direction: spray down
Screen area: 1m*3m~3.5
Power: 220v (ac) 2kw-7KW
Water consumption: 8~15L/h
Imaging equipment: projector (5000 lumens or more) or laser
Weight: 160kg
Medium: tap water
Product Features: Hanging
Control method: remote control (distribution of 4 meters water pipe)
Imaging playback device: projector or laser
Imaging playback device: projector or laser
Display screen: 3.2 inch main screen display 0.9 inch remote screen display
Control mode: support manual remote control one-button start (remote distance can reach 1000 meters)
Support industrial control 485 232 control system
Support remote control to control the amount of fog and linear adjustment
Support remote control to control the air volume and linear adjustment
Support encryption system (set to exceed the usage time, automatically power off, re-enable after decryption)
Support automatic water inlet system Automatic drainage system Water shortage display Water level protection system
Fog machine Area: width 0.60 m x height 0.55 m * (length customized according to requirements)
Power source: AC 110V-240V
Power: 1000W / 1 meter
Fog screen spray height: 3 meters (effective imaging 2 meters)
Projector requirements: 5000 lumens or more, telephoto lens
Machine material: the fog curtain chassis is all made of stainless steel welding process and painting treatment
The water tanks are also all made of stainless steel welding and painting, and the waterproof rating is IP54. Water tank, water pipe leakage level 99.99%
Features:
The biggest selling point of the fog screen cinema technology is its fascinating display. A single fog screen is enough to attract the eyes of tourists. Specifically, it has the following
Characteristics:
1, do not need traditional physical screen, people can directly penetrate the screen
2, can play slides, video, movies, and other video data
3. The program source is rich, users can change the program by themselves, no special production is required.
4, the image is clear and dynamic
Product advantages:
1. Highlight the three-dimensional effect of the space, make the picture realistic and shock, let visitors come to the scene, thus increasing entertainment and interactive fun.
2. The device is not limited by the space location, and the displayed screen size can be freely expanded as needed.
3. Projection content can be customized
4. The fog screen is maintenance-free and the equipment has a longer service life.
Product application areas:
The fog screen is mainly suitable for stage, theater, media exhibition agencies, large shopping mall entrances, discos, KTV, tourist attractions, theme parks, entertainment venues, science and technology museums, museums, planning halls, new product launches, performing arts venues, and themes. Education halls, children's science parks, catering industry, clubs, etc. can all be used as a new display medium.
